PVC Steel Wire Hose





The pvc steel wire hose have normal standard and food grade . The normal standard steel wire hose is widely used for drawing and conveying water, oil and powder in the factories, agriculture, engineering  and transparent. The food grade steel wire hose can be used for conveying milk, beverage, distilled liquor, beer, jam and other foods.





Alias: Thunder Hose, PVC Spring Hose, PVC steel suction hoses, steel Spiral Reinforced PVC Suction Hoses, watersuction hoses with steel wire, PVC Suction and discharge hoses,steel-reinforced PVC hoses.

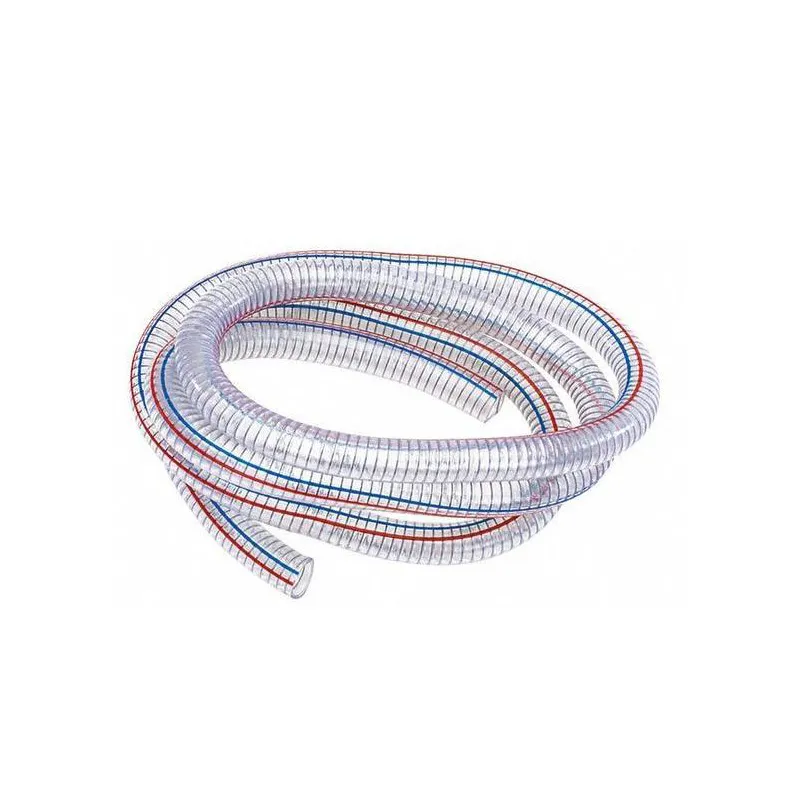

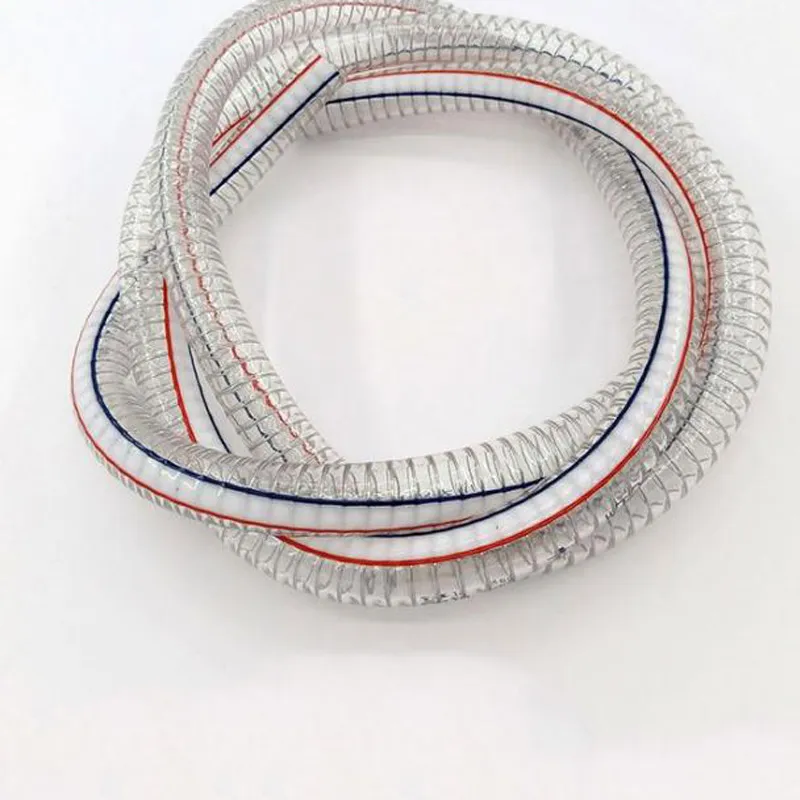

This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending radius. It has good adaptability to hard weather conditions and minus pressure. With colorful symbol lines on the surface of the hose, it can be beautiful.





Steel Wire Reinforced PVc Hose has a wire reinforcement incorporated within the wall and a clear miror-smoothsurface that provides visual fow and reduces materia, buildup, Kink and crush resistant, Lightweight vet tough andabrasion-resistant. This type of hose is often used in industries such as agriculture, construction, mining, andmanufacturing. lt is suitable for a range of applications, including water suction and discharge,irrigation, dewateringand pumping of liguids and slurries. The steel wire reinforcement enables the hose to handle demanding tasks andprovides resistance to crushing, impact, and external pressures.



Temperature Range: -10℃ ~70℃







Product Ref	Nominal dimension	Size		Length	W.P.	B.P.	Weight	Volume
	lnch	I.D x O.D
		mm	mm	m	bar	bar	kg/roll	m3
PSWH-06	1/4"	6	11	100	-1~11	33	11.5	0.028
PSWH-08	5/16"	8	14	100	-1~11	33	15	0.039
PSWH-10	3/8"	9	14±0.2	100	-1~10	30	15	0.027
		10	15±0.2	100	-1~10	30	16	0.041
		9	15	100	-1~11	33	18	0.029
		10	16	100	-1~11	33	20	0.045
PSWH-12	1/2"	12	17±0.2	100	-1~9	30	17	0.044
		12	18	100	-1~10	30	22	0.049
PSWH-16	5/8"	15	22	100	-1~10	30	31	0.074
		15	21±0.2	100	-1~9	30	26	0.074
		16	20±0.2	100	-1~8	20	18	0.061
		16	23±0.2	100	-1~9	30	32	0.063
PSWH-20	3/4"	19	26	50	-1~10	30	18	0.052
		19	25.5±0.2	50	-1~8	20	15	0.05
		20	26±0.2	50	-1~8	20	16	0.05
		20	24.5±0.2	50	-1~8	20	13	0.05
PSWH-22	7/8"	22	30±0.2	50	-1~8	20	25	0.065
		22	27±0.2	50	-1~8	20	15	0.058
PSWH-25	1"	25	33	50	-1~10	25	27	0.085
		25	29±0.2	50	-1~7	20	11	0.065
		25	30±0.2	50	-1~7	20	18	0.069
		25	32±0.2	50	-1~7	20	25	0.078
PSWH-32	1-1/4"	32	41	40	-1~7	20	31	0.106
		32	36±0.2	50	-1~5	19	20	0.124
		32	38.6±0.2	50	-1~5	19	30	0.133
		32	41±0.2	50	-1~6	20	40	0.152
		32	41.6±0.2	50	-1~6	20	45	0.13
PSWH-38	1-1/2"	38	48	40	-1~6	18	42	0.154
		38	42.8±0.2	50	-1~5	16	25	0.154
		38	44±0.2	50	-1~5	16	30	0.161
		38	44.6±0.2	50	-1~5	16	35	0.169
		38	45.5±0.2	50	-1~6	18	40	0.173
		38	46.4±0.2	50	-1~6	18	45	0.184
PSWH-45	1-3/4"	45	56	40	-1~6	17	52	0.19
		45	50±0.2	50	-1~5	16	30	0.198
		45	52±0.2	50	-1~5	16	40	0.211
		45	53±0.2	50	-1~5	16	50	0.229
PSWH-48	1-7/8"	48	59	40	-1~5	16	56	0.208
		48	54.6±0.2	50	-1~5	15	40	0.234
		48	56.4±0.2	50	-1~5	15	60	0.262
		48	58±0.2	50	-1~5	15	70	0.267
PSWH-50	2"	50	62	40	-1~5	16	64	0.276
		50	55.6±0.2	50	-1~5	10	40	0.258
		50	57.2±0.2	50	-1~5	14	50	0.268
		50	58.2±0.2	50	-1~5	14	60	0.273
		50	60±0.2	50	-1~5	15	70	0.289
PSWH-58	2-5/46"	58	70	40	-1~5	15	80	0.35
PSWH-64	2-1/2"	63	80	30	-1~5	14	84	0.33
		64	72.3±0.2	40	-1~4	10	60	0.351
		64	75±0.2	40	-1~4	10	80	0.37
		64	76±0.2	40	-1~4	10	94	0.37
		64	77±0.2	40	-1~4	10	100	0.389
PSWH-75	3"	75	91	30	-1~5	13	105	0.436
		75	84±0.2	40	-1~4	10	72	0.504
		75	85±0.2	40	-1~4	10	80	0.504
		75	87±0.2	40	-1~4	10	100	0.681
		75	89±0.2	40	-1~4	10	120	0.715
PSWH-90	3-1/2"	90	108	20	-1~4	12	90	0.64
PSWH-100	4"	100	118	20	-1~3	10	96	0.505
		102	112±0.2	30	-1~3	10	90	0.667
		102	114±0.2	30	-1~3	10	105	0.676
		102	115±0.2	30	-1~3	10	120	0.706
		102	118±0.2	30	-1~3	10	144	0.716
PSWH-110	4-3/8"	110	123	20	-1~3	10	80	0.81
PSWH-117	4-5/8"	117	133	20	-1~3	10	110	1.024
PSWH-127	5"	127	143	20	-1~3	10	120	1.243
PSWH-140	5-1/2"	140	156	10	-1~3	10	65	0.627
PSWH-152	6"	152	170	10	-1~3	10	90	0.765
PSWH-160	6-5/16"	160	176	10	-1~3	10	85	0.922
PSWH-180	7"	180	196	10	-1~3	10	85	1.156
PSWH-200	8"	200	224	10	-1~3	10	120	1.426



How a Transparent Hose with Wire Enhances Safety and Efficiency in Food and Beverage Processing



A transparent hose with wire significantly enhances both safety and efficiency in food and beverage processing due to its unique combination of visual monitoring capabilities and structural integrity.

Enhanced Safety Through Visual Flow

The most immediate benefit is the transparency of the PVC material. This clarity allows for visual flow monitoring, which is crucial in the food industry. Operators can instantly inspect the contents being conveyed, such as milk, beverage, distilled liquor, beer, jam, and other foods. This capability enhances safety by:

Detecting Contamination: Immediate visibility helps spot any foreign particles, discoloration, or microbial growth that might contaminate the product, ensuring food safety standards are met.
Preventing Cross-Contamination: When switching between different products (e.g., beverages), the transparent wall confirms that the line is fully purged and cleaned, preventing the incorrect transfer of liquids.

Monitoring CIP (Clean-In-Place) Cycles: Visibility ensures cleaning solutions are flowing correctly and rinsing is complete, validating sanitation protocols.

Structural Efficiency and Reliability

The embedded steel wire reinforcement, which gives the hose its alias as PVC Spring Hose or steel Spiral Reinforced PVC Suction Hoses, boosts operational efficiency:

Kink and Crush Resistance: The wire screwing inlaid in the hose makes it highly Kink and crush resistant. This is vital in busy processing plants where hoses might be run over or heavily routed, ensuring continuous, uninterrupted flow and preventing costly downtime.

Suction and Discharge Capability: The steel reinforcement enables the hose to handle minus pressure (vacuum) without collapsing, making it suitable for both suction and discharge hoses applications, such as drawing ingredients from tanks.

Reduced Material Buildup: The clear mirror-smooth surface minimizes friction and reduces material buildup, ensuring product integrity and simplifying the cleaning process.
By using the food grade steel wire hose, processors get a highly adaptable, safe, and efficient conduit that is suitable for the demanding tasks of modern food and beverage production.



What to Look for When Selecting PVC Steel Wire Hose Manufacturers for Industrial Projects



When selecting PVC steel wire hose manufacturers for demanding industrial projects—such as those in agriculture, construction, mining, and manufacturing—the focus should be on product quality, material integrity, and proven performance standards.

Manufacturing Quality and Material Standards

The first priority is ensuring the manufacturer adheres to strict quality control, particularly regarding the core components:

Reinforcement Strength: Verify the quality of the steel wire screwing inlaid in the hose. A high-quality PVC steel wire hose must provide sufficient reinforcement to meet the requirements for minus pressure (suction) and resistance to crushing, impact, and external pressures typical in heavy industry.

PVC Compound Quality: The PVC must be tough, abrasion-resistant, and flexible while maintaining long-term clarity and operating within the specified Temperature Range of -10℃ ~70℃. Inconsistency in the PVC quality can lead to premature hardening or cracking.

Certification and Application Specialization

A reliable manufacturer will have verifiable certifications and specialized product lines:

Food Grade Capability: For any application involving consumables (even indirectly), confirm the manufacturer produces certified food grade steel wire hose and can provide documentation proving compliance for conveying items like milk, beverage, jam, and other foods.

Performance Metrics: The manufacturer should clearly state technical specifications, including the maximum working pressure, minimum bending radius, and the pressure rating for the steel Spiral Reinforced PVC Suction Hoses. The small bending radius mentioned in the characteristics is a key performance indicator for maneuverability in tight industrial spaces.

Reputation and Customization

Finally, assess the manufacturer's experience and service capabilities:

Industry Experience: Choose PVC steel wire hose manufacturers with a strong track record of supplying similar steel-reinforced PVC hoses to sectors like mining and construction, indicating their hoses are built to handle demanding tasks.

Customization and Support: Manufacturers who can offer various sizes and support services are preferable, ensuring they can meet the specific needs of your project, such as custom fittings or specialized testing.



Comparing Food-Grade vs. Standard PVC Steel Wire Hoses: Which One Fits Your Application?



The choice between food-grade vs. standard PVC steel wire hoses hinges entirely on the intended application and the nature of the material being conveyed. Both types share the fundamental structure of a PVC steel wire hose with internal wire reinforcement, but they differ critically in material purity and compliance.

The food grade steel wire hose is specifically formulated to be non-toxic and non-leaching, ensuring the integrity and safety of consumables. This is the only acceptable choice for any process where the conveyed material is consumed by humans or animals.

Structural and Performance Similarities

In terms of mechanical performance, both versions of the pvc steel wire hose offer the same core benefits due to the steel wire reinforcement:

Suction Capability: Both function as PVC steel suction hoses, able to handle minus pressure due to the embedded wire, making them suitable for drawing liquids.
Durability: Both are tough and abrasion-resistant, and offer resistance to crushing, impact, and external pressures, making them suitable for use in demanding fields like agriculture, construction, and mining.

Visual Monitoring: Both are transparent hose with wire, allowing for visual flow and easier monitoring of the conveyed materials or potential blockages.

Selecting the Right Hose

Choose Food-Grade If: Your application involves contact with any food, beverage, or pharmaceutical product. The higher cost is mandatory for consumer safety and regulatory compliance.
Choose Standard Grade If: Your application involves water suction and discharge, irrigation, dewatering and pumping of liguids and slurries, oil, or non-potable powder in industrial or agricultural settings where ingestion is not a factor. This option is typically more cost-effective for heavy-duty, non-sanitary tasks.
