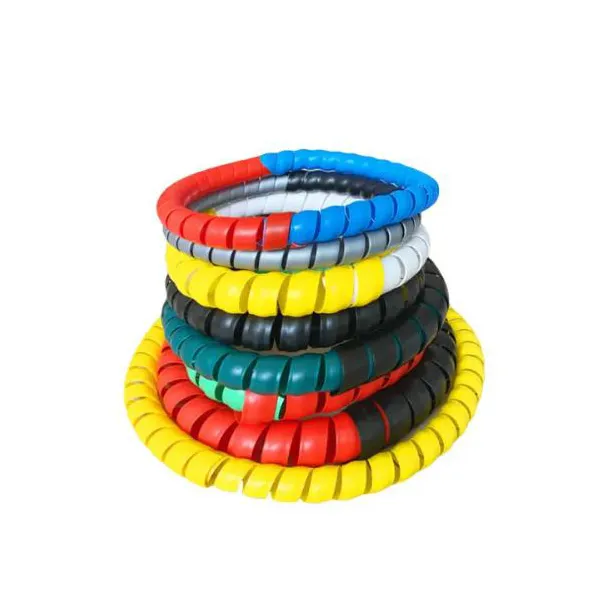

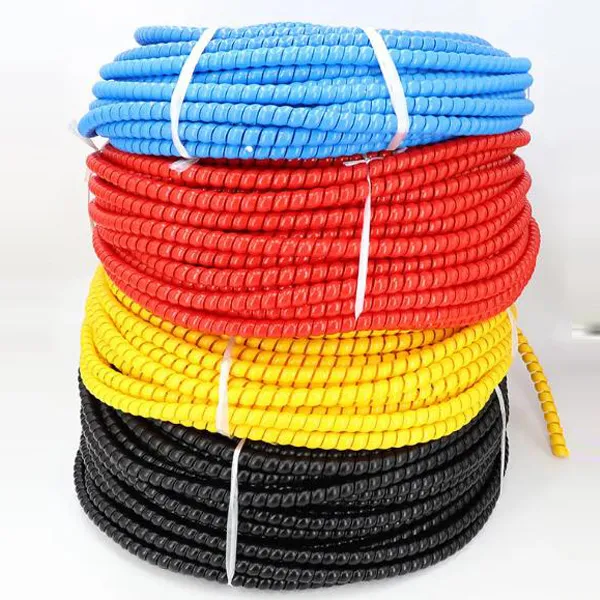

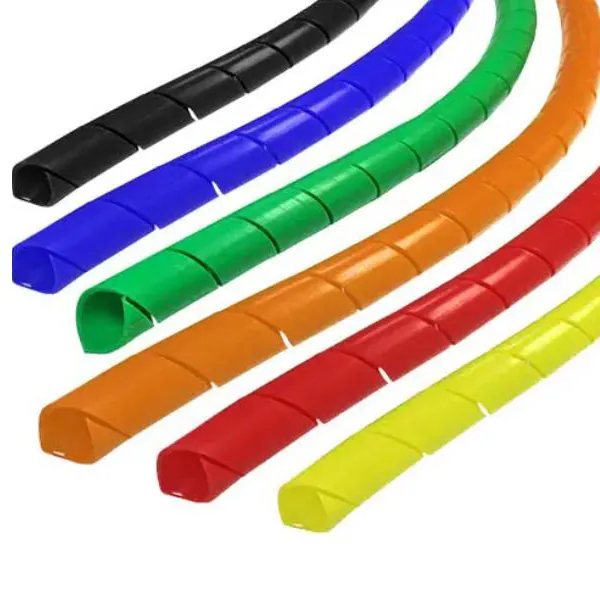

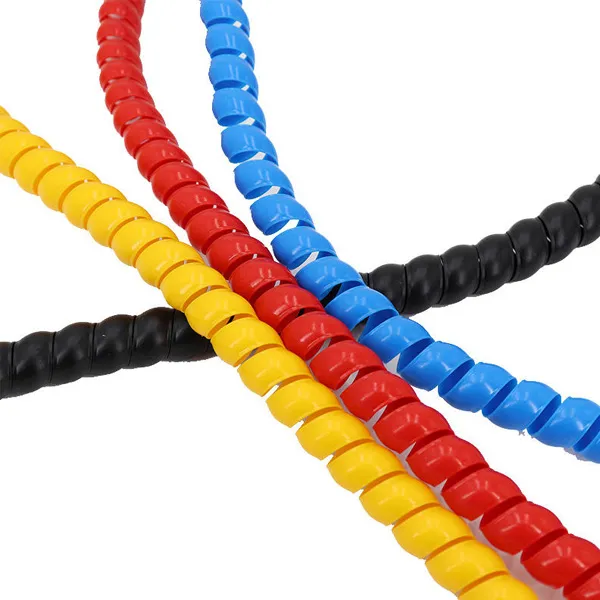

The use of Spiral Guard Wrap is an economical and convenient method of protecting and extending the life of hydraulic and pneumatic hoses, cables, wires and rope from premature wear. Manufactured from extruded high density polyethylene (HDPE), Spiral Guard Wrap will withstand the extremes of climate and operating conditions.Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards Spiral Guard Wrap’s open spiral design allows for simple installation in the field, without the need to disconnect lines.
high-density Polyethylene, spiral-formed protection system, wear, cut, and crush-resistant
polymer Tensile Strength 25MPa at room temperature.
"Mining, equipment, forestry, agriculture, trucking, automotive applications.The use of spiral hose guard is an economical and convenient method of protecting and extending the life of hydraulic and
pneumatic hoses, cables, wires and rope from premature wear.Spiral hose guard will withstand the extremes of climate and operating conditions.
Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards."
Temperature Range -60℉ to +210℉ (-50℃ to +100℃)
| Item Code | I.D | Thickness | Width | Applied for | |||
| mm | inch | mm | mm | mm | |||
| HPS-8 | 8 | 5/16" | 1.5 | 7 | 43322.00 | ||
| HPS-10 | 10 | 3/8" | 1.5 | 10 | 43385.00 | ||
| HPS-12 | 12 | 1/2" | 1.5 | 12 | 43448.00 | ||
| HPS-14 | 14 | 11/20" | 1.5 | 13 | 14-16 | ||
| HPS-16 | 16 | 5/8" | 2 | 15.5 | 16-18 | ||
| HPS-18 | 18 | 3/4" | 2 | 16 | 18-20 | ||
| HPS-20 | 20 | 4/5" | 2.2 | 16 | 20-22 | ||
| HPS-22 | 22 | 43/50" | 2.2 | 19.5 | 22-25 | ||
| HPS-25 | 25 | 1" | 2.2 | 22.5 | 25-28 | ||
| HPS-28 | 28 | 1-1/10" | 2.2 | 23 | 28-30 | ||
| HPS-30 | 30 | 1-9/50" | 2.5 | 23 | 30-32 | ||
| HPS-32 | 32 | 1-1/4" | 2.5 | 23.5 | 32-35 | ||
| HPS-35 | 35 | 1-19/50" | 2.5 | 24 | 35-38 | ||
| HPS-38 | 38 | 1-1/2" | 3 | 28 | 38-40、42 | ||
| HPS-40 | 40 | 1-29/50" | 3 | 28 | 40-42 | ||
| HPS-42 | 42 | 1-13/20" | 3.5 | 28 | 42-45 | ||
| HPS-45 | 45 | 1-39/50" | 3.5 | 28 | 45-50 | ||
| HPS-50 | 50 | 2" | 3.5 | 28 | 50-60 | ||
| HPS-60 | 60 | 2-1/2" | 4 | 28 | 60-74 | ||
| HPS-74 | 74 | 2-9/10" | 4 | 46.5 | 74-80 | ||
| HPS-80 | 80 | 3-3/20" | 4.5 | 48.5 | 80-88 | ||
| HPS-88 | 88 | 3-1/2" | 4.5 | 50 | 88-100 | ||
| HPS-100 | 100 | 4" | 4.5 | 57 | 100-130 | ||
| HPS-130 | 130 | 5" | 4.5 | 50 | 130-155 | ||
| HPS-150 | 150 | 6" | 4.5 | 50 | 150-200 | ||
| HPS-200 | 200 | 7-22/25" | 5 | 50 | 200 | ||
PP Spiral Guard Wrap for Hydraulic Hoses FAQs
What is the primary benefit of using a Spiral Guard Wrap?
The Spiral Guard Wrap is an economical and convenient solution for protecting and extending the life of hydraulic and pneumatic hoses. It prevents premature wear on cables, wires, and ropes by shielding them from external abrasion and impact in demanding industrial environments.
What material is used to manufacture these spiral hose guards?
Our spiral hose guards are manufactured from extruded high-density polyethylene (HDPE). This high-strength polymer features a tensile strength of 25MPa at room temperature, providing a durable, spiral-formed protection system that is wear, cut, and crush-resistant.
How does the PP Spiral Guard protect against environmental hazards?
The PP Spiral Guard is engineered to withstand extremes of climate and operating conditions. It offers robust protection against abrasion, cuts, crushing, and UV radiation, ensuring that your hydraulic lines remain intact even when exposed to harsh sunlight or rough terrain.
Is it necessary to disconnect hoses to install the spiral wrap?
No. One of the greatest advantages of our Spiral Guard Wrap is its open spiral design. This allows for simple installation in the field without the need to disconnect any lines or disassemble the hydraulic system, significantly reducing maintenance downtime.
In which industries is the spiral hose protection wrap most commonly used?
This spiral-formed protection system is widely applied in high-intensity sectors including mining, equipment manufacturing, forestry, agriculture, and trucking. It is an essential protective component for heavy machinery where hoses are frequently exposed to friction.
What is the temperature resistance range for your HDPE spiral guards?
Our HDPE spiral guards are designed for global use in extreme climates. They can reliably operate in a broad temperature range from -60°F to +210°F (-50°C to +100°C), maintaining their protective properties in both sub-zero forestry operations and high-heat mining sites.
Can the spiral guard be used for bundling multiple cables or wires?
Yes. The flexible spiral wrap design is not only ideal for individual hydraulic hoses but also serves as an excellent cable management tool. It can bundle multiple wires or cables together, providing a unified, organized layer of protection against entanglement and external wear.
Why is the Spiral Guard Wrap considered an economical maintenance choice?
By preventing the premature failure of expensive hydraulic and pneumatic hoses, the Spiral Guard Wrap significantly reduces replacement costs and machine downtime. Its durability and ease of field installation make it a highly cost-effective investment for long-term equipment maintenance.
